Product Details

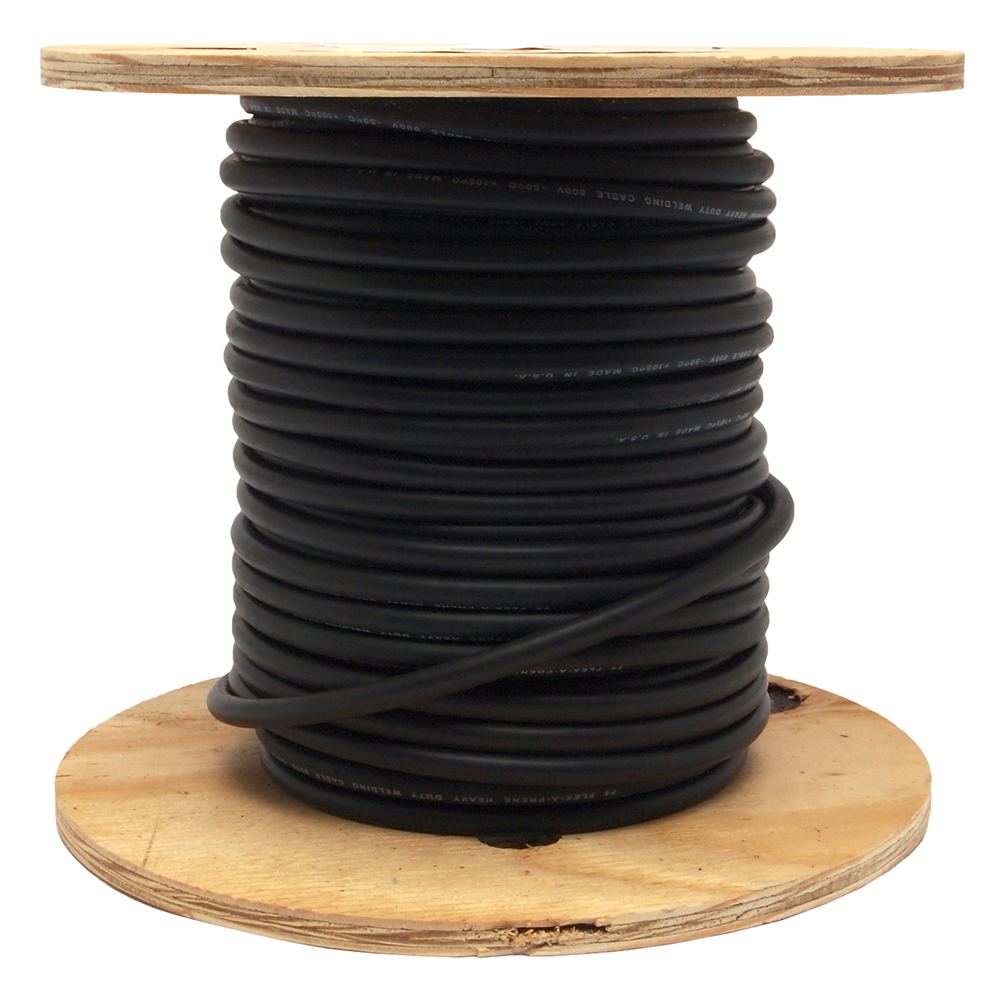

No.4 American Wire Gauge (AWG) x 125' (38.1m) highly flexible welding cable manufactured with 364 strands of fully annealed soft-drawn copper. Highly durable and versatile. Designed for use in stingers/whips, leads and ground clamp welding assemblies as well as battery applications such as chargers and wire harnesses. Specifications: AWG size: No.4 Cable length: 125' (38.1m) coil Stranding gauge: 30 Conductor stranding: 364 Wall thickness (nominal): .060" (1.52mm) Outside diameter (nominal): .343" (8.71mm) Cable weight per 1,000' (304.8km): 147 Lbs (67kg) Wrapped paper separator between copper and outer low-smoke, halogen-free EPDM jacket. Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid and transmission fluid. Rated at 600 Volts. Conductor temperature range of -58° F (-50° C) to 221° F (105° C). SAE J1127 compliant REACH, RoHS, CMRT and Prop 65 compliant NEC Article 630 (Electric Welders) approved Suitable for battery use per UL 558 and 583 Made in the USA.
